Liner Panels

Liner Panels & Soffit

VP offers several different options for liner panels and soffit.

Download Product Information for Liners and Soffits

VP LPR-36 Liner Panel

Most economical interior wall system

LPR-36 wall panels are 28 gauge and measure 36" wide. Liner Panel is an AZ50 ASTM A792 with aluminum-zinc coating SMP finish. The wall panel is painted with an AZ-50 coated Cool Cotton White SMP finish on one side and a gray primer coating on the reverse.

  • Same profile as Panel Rib
  • 36" Coverage
  • Lengths up to 43'
   Vplpr36

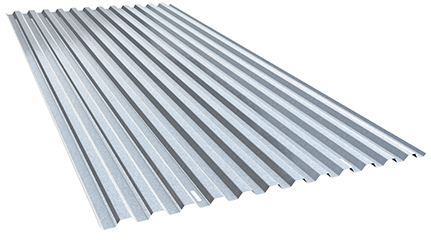

Deck-Liner™ Panel

Most versatile liner for interior walls and composite roof systems

Deck-Liner™ can be used as a base layer over purlins or joist when designing a composite roof system to provide additional thermal protection and an attractive ceiling. Also, Deck-Liner™ can be used as an economical option for interior walls and roof liners. In mezzanine applications, Deck-Liner™ serves as an inexpensive decking base.

Deck-Liner™ wall panels are 28 gauge and measure 36" wide. The wall panel is painted with a white polyester finish on one side and a gray primer coating on the reverse or bare Galvalume. Deck-liner panels are available in 28 (1), 26 (2), 24 (2) and 22 (1) gauges. (1) Finish options include Galvalume and polyester white, (2) Finish options include Cool Arctic White, Cool Egyptian White, Cool Cotton White, Cool Colonial Red, Cool Straw Gold, Cool Dark Bronze, Cool Bermuda Green, Cool Imperial Blue, Cool Granite Gray, Cool Sierra Tan, Cool Cobalt Blue and Cool Zinc Gray.

  • 36" Coverage
  • Lengths up to 39'
    DeckLiner Web

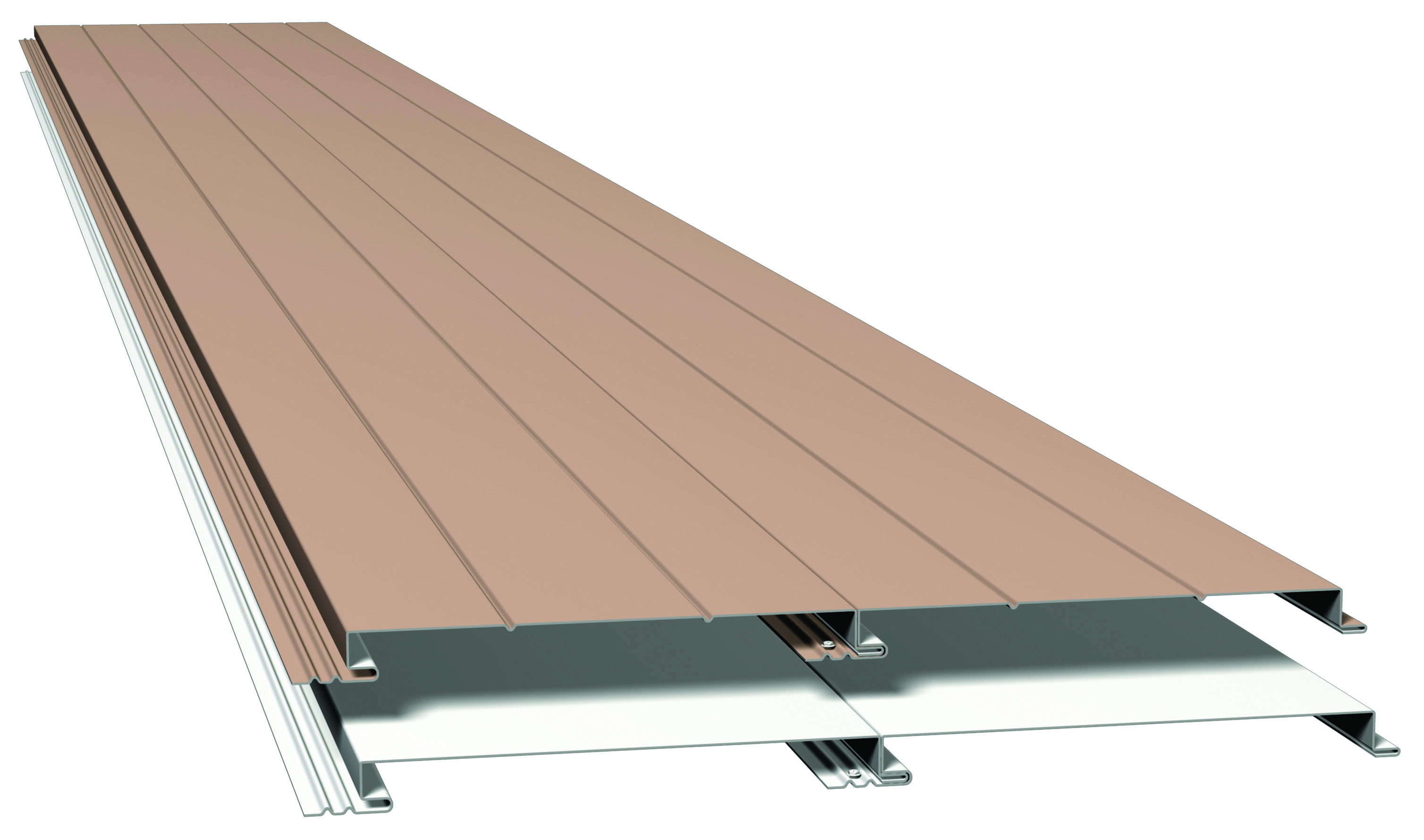

FP-12 Soffit

FP-12 can be rolled in a selection of profile appearances, including:

  • Smooth face (12" flat-for applications less that 15")
  • One stiffening bead (6"/6")
  • Two stiffening beads (4"/4"/4")
  • Lengths from 2' to 15'
  • (5) STD Colors - Cool Egyptian White, Cool Cotton White, Cool Dark Bronze, Cool Granite Gray and Cool Sierra Tan
  • 12" panel width
  • Concealed fasteners
  • 7/8" profile depth of panel
Fp Panels
